Swing Motor
  <1>¡¢<2>¡¢<3> prev next
      ¡öPart No.:49TYJ-1
Characteristic:
  Low noise
  High precision
  Big torque

Application:
  2¡«5 H.P.Vertical
  conditioner

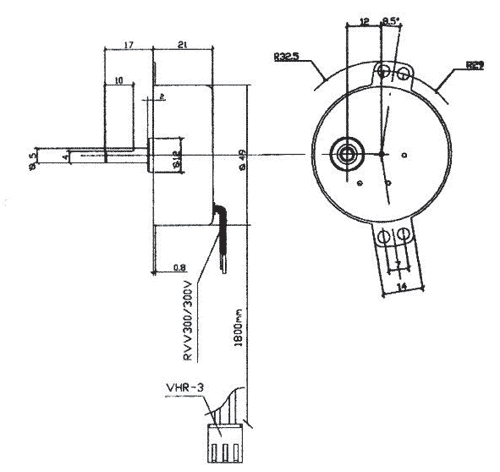

            ¡öDimensions(unit:mm)




            ¡öElectrical Properties
      Rated Voltage:       220V AC 50Hz
      Power consumptipn:       ¡Ü3W
      Input current:       ¡Ü30mA
      Torque       ¡Ý5 kg.cm
      Speed       4¡×5 R.P.M.
      Starting voltage:       ¡Ý180V
      Insulation resistance:       ¡Ý100M¦¸
      Dielectric strength:       1500 V AC/1min
      Noise:       ¡Ü40dB
      Coil tempture rise:       ¡Ü60K
      Insulation class:       E

  ¡öPacking Information:
  125pcs per export carton with dimension 30cm(L)¡Á23cm(W)¡Á29cm(H).
Gross weight per carton:14kgs              Net weight per carton:13kgs
