| Stepper
Motor |
|
|
| ¡öPart
No.:35BYJ-B(MP35-B) |
|
|
| Characteristic: |
| |
Low noise |
| |
High precision |
| |
Big torque |
| |
|
| Application: |
| |
1.5 H.P.Wall mounted air |
| |
conditioner |
|
| |
|

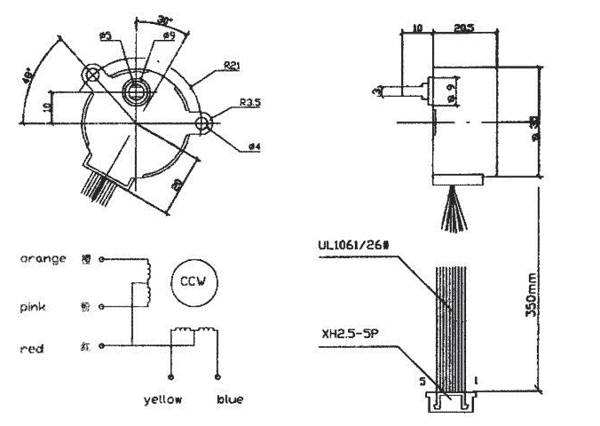

¡öDimensions(unit:mm) |
|
| |
1-2PHASE EXITATION UNIOPLAR DRIVE
| Connector
no |
Leadwire
colour |
·Ö Åä
·½ ʽ |
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
5 |
red |
+ |
+ |
+ |
+ |
+ |
+ |
+ |
+ |
4 |
orange |
- |
- |
|
|
|
|
|
- |
3 |
yellow |
|
- |
- |
- |
|
|
|
|
2 |
pink |
|
|
|
- |
- |
- |
|
|
1 |
blue |
|
|
|
|
|
- |
- |
- |
OUT PUT SHAFT CCW |
| ¡öElectrical
Properties |
| Number
of phase: |
4
phase |
| Driver
mode:(A-AB-B-BC....) |
1¡ª2
phase |
| Step
angle(output shaft) |
7.5¡ã |
| Gear
reduction ration: |
1/85 |
| Voltage: |
12V
DC |
| Resistance
per phase: |
130¦¸ |
| Max
response frequency: |
900pps |
| Max
starting frequency: |
600pps |
| Pull
in torque:(12V DC 100PPS) |
800g.cm |
| Insulation
resistance: |
>10M¦¸ |
| Dielectric
strength: |
600V
DC/1s |
| Insulation
class: |
E |
| Temperature
rise: |
<50K |
| Noise: |
<40dB |
| Weight |
about
60g |
|
| |
|
| |
¡öPacking Information: |
| |
200pcs per export carton
with dimension 32cm(L)¡Á24cm(W)¡Á20cm(H).
Gross weight per carton:12.5kgs
Net weight per carton:12kgs |
|
|
|
|
|
