| DC
Motor |
|
|
| ¡öPart
No.:PM42-48-ND01 |
|
| |
| |
|

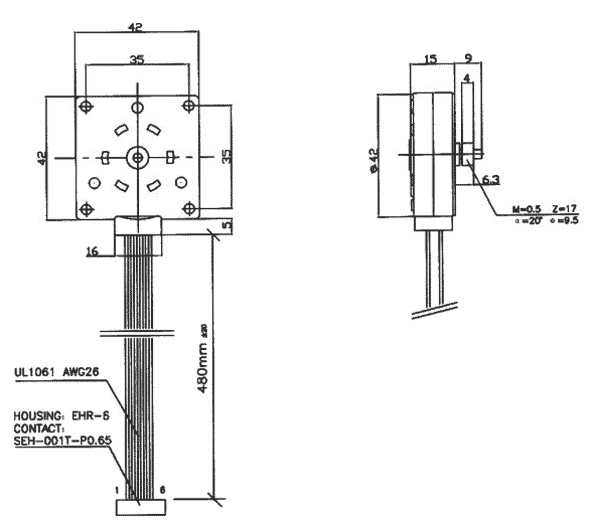

¡öDimensions(unit:mm) |
|
| |
 |
| |
6 |
5 |
4 |
3 |
2 |
1 |
| Brown |
Red |
Orange |
Yellow |
Pink |
Bule |
A |
+ |
+ |
- |
|
|
- |
B |
- |
- |
|
|
C |
|
- |
- |
|
D |
|
|
- |
- |
|
 |
|
| ¡öElectrical
Properties |
| Drive
voltage |
24
V DC |
| Phase
on method |
2-2PHASE |
| Step
angle |
7.5¡ã |
| Angle
tolerance |
¡À0.5% |
| Holding
torque(2-2PHASE) |
305g.cm |
| Pull
out torque(720pps) |
140g.cm |
| Max.No
load response |
500PPS |
| Max.slew
speed |
1600PPS |
| Winding
resistance |
15¦¸ |
| Insulation
resistance |
100M¦¸ |
| Dielectric
strength |
500V
AC 1min |
| Temperture
rise |
60K |
| Class
of insulation |
E |
| Operating
temp. |
-10¡æ
to 50¡æ |
| Storage
temp. |
-30¡æ
to 80¡æ |
| Operating
hum. |
-30%RH
to 90%RH |
| Weight |
about
80 kgs |
|
| |
|
| |
¡öPacking Information: |
| |
100pcs per export carton
with dimension 35cm(L)¡Á30cm(W)¡Á25cm(H).
Gross weight per carton:9kgs
Net weight per carton:8kgs |
|
|
|
|
|
